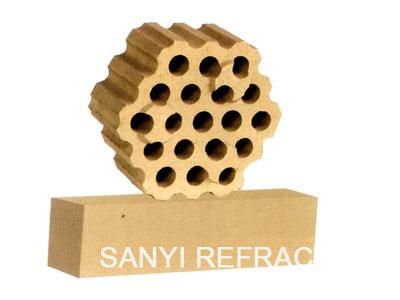

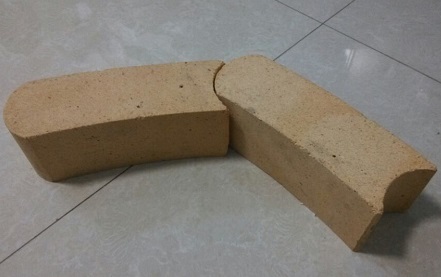

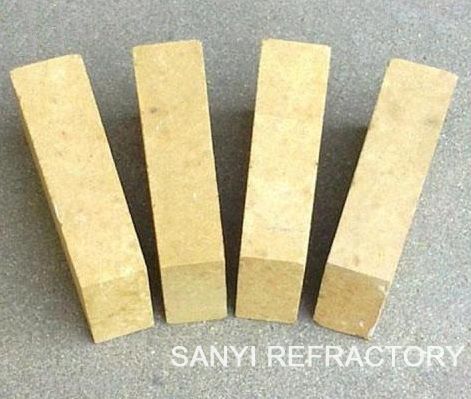

High Alumina Brick
Description
The high alumina brick uses the high alumina content mineral as the raw material, mainly includes the high quality bauxite clinker, the blue crystal group mineral (the blue crystal, the silicalite, the andalusite), the artificial synthesis material (mullite, fused corundum, industrial alumina and so on) and so on,With all kinds of high performance additives combination ingredients, after forming by high-tonnage brick press,then in the tunnel kiln through 1500 degrees above the high temperature calcined from. It is mainly used for lining of blast furnace, hot blast furnace, electric furnace top, blast furnace, reflex furnace, rotary kiln and so on. In addition , high alumina brick is widely used as heat accumulating checker brick , plug for pouring system , nozzle brick , and flue and partition wall of various kilns .It can be divided into high aluminium brick for blast furnace, high aluminum brick for hot blast furnace, high aluminum brick for lael, high aluminum brick for top of electric furnace, high aluminum brick for glass kiln, high aluminum brick for cement kiln, and general purpose high aluminum brick for industrial furnace.
Technical parameters of High Alumina Brick For Blast Furnace:
| High Alumina Brick For Blast Furnace | ||||
| Item | GL-75 | GL-65 | GL-55 | GL-48 |
| Al2O3, ≥ % | 75 | 65 | 55 | 48 |
| Fe2O3,< % | 2 | 2 | 2 | 2 |
| Refractoriness℃ | 1790 | 1790 | 1770 | 1750 |
| A.P,≤ % | 19 | 19 | 19 | 18 |
| RUL,℃ > | 1520 | 1500 | 1480 | 1450 |
| CCS,> Mpa | 58.8 | 58.8 | 49 | 49 |
| P.L.C(1500℃×2h), % | 0~-0.2 | 0~-0.2 | 0~-0.2 | 0~-0.2 |
Technical parameters of Low Creeping High Alumina Brick For Hot Blast Stove:
| Low Creeping High Alumina Brick For Hot Blast Stove | |||||
| Item | DRL-155 | DRL-150 | DRL-145 | DRL-140 | DRL-135 |
| Al2O3, ≥ % | 75 | 75 | 65 | 65 | 65 |
| A.P,≤ % | 20 | 21 | 21 | 22 | 22 |
| B.D,g/cm3≥ | 2.65 | 2.65 | 2.5 | 2.4 | 2.35 |
| CCS,> Mpa | 60 | 60 | 60 | 55 | 55 |
| Creeping Rate, % | 0.8 | 0.8 | 0.8 | 0.8 | 0.8 |
| P.L.C(1500℃×2h), % | 0.1~0.2 | 0.1~0.2 | 0.1~0.2 | 0.1~0.2 | 0.1~0.2 |
| Thermal Shock(1100℃, Cool by Water) ≥ | Actual value should be issued for roof and wall bricks | ||||
| Low Creeping and Anti-thermal shock Alumina Bricks for Hot Blast Stove | |||
| Item | HD | HS | HB |
| Al2O3, ≥ % | 53 | 57 | 65 |
| Fe2O3,< % | 1.7 | 0.8 | 0.8 |
| TiO2,< % | 0.6 | 0.5 | 0.5 |
| R2O,< % | 0.6 | 0.6 | 0.6 |
| A.P,≤ % | 20 | 20 | 20 |
| B.D,g/cm3 ≥ | 2.35 | 2.4 | 2.45 |
| CCS,> Mpa | 40 | 40 | 50 |
| Creeping Rate(20-50h), % | 0.2 (1350℃) | 0.2 (1400℃) | 0.2 (1450℃) |
| P.L.C(1400℃×4h), % | ± 0.2 | ± 0.2 | ± 0.2 |
| RUL,℃ > | 1350 | 1470 | 1520 |
| Thermal Shock(1100℃, Cool by Water) ≥ | 20 | 20 | 20 |
Technical parameters of High Alumia Brick for Ladel:
| High Alumia Brick for Ladel | |||||
| Item | CL-55 | CL-65 | CL-75 | CL-80 | CL-78 |
| Al2O3, ≥ % | 55 | 65 | 75 | 80 | 78 |
| Fe2O3,< % | - | - | - | 2 | 2 |
| A.P,≤ % | 22 | 28 | 28 | 24 | 21 |
| CCS,> Mpa | 45 | 35 | 40 | 50 | 70 |
| P.L.C(1500℃×2h), % | 0.1~-0.5 (1450℃×2h) |
0~-0.5 (1500℃×2h) |
0.1~-0.5 (1500℃×2h) |
0.1~-0.5 (1550℃×2h) |
0.3~0.4 (1550℃×2h) |
| RUL,℃ > | 1470 | 1490 | 1510 | 1530 | 1550 |
Technical parameters of High Aluminium Brick for Top of Electric Furnace:
| High Aluminium Brick for Top of Electric Furnace | |||||
| Item | DL-80 | DL-75 | BDL-80 | BDL-75 | |
| Al2O3, ≥ % | 80 | 75 | 80 | 75 | |
| A.P,≤ % | Top brick | 19 | 19 | 18 | 18 |
| Arch brick | 21 | 21 | 20 | 20 | |
| CCS,> Mpa | 75 | 65 | 60 | 55 | |
| Refractoriness℃,≥ | - | - | 1780 | 1780 | |
| RUL,℃ > | 1530 | 1520 | 1530 | 1520 | |
| P.L.C(1500℃×2h), % | 0.2/-0.4 | 0.2/-0.4 | - | - | |
| Thermal Shock(1100℃, Cool by Water) ≥ | Provide actual test data | 8 | |||
Technical parameters of Anti-stripping high alumina brick for glass kiln:
| Anti-stripping high alumina brick for glass kiln | ||
| Item | YRS-70 | YRS-75 |
| Al2O3, ≥ % | 70 | 75 |
| ZrO2, % | 6-7 | - |
| Fe2O3,< % | 2.0 | 2.3 |
| B. D,g/cm3 ≥ | 2.5 | 2.5 |
| CCS,> Mpa | 50 | 65 |
| RUL,0.2Mpa, >℃ | 1450 | 1490 |
| Refractoriness℃,≥ | 1770 | 1790 |
| T.C(1000℃),W/M.K,℃,≤ | 1.4 | 1.4 |
| Therm.Exp(1000℃) % | 0.4-0.6 | 0.4-0.6 |
| Thermal Shock(1100℃, Cool by Water), ≥ |
20 | 25 |
Technical parameters of high alumina brick for cement kiln:
| Item | Anti-stripping high alumina brick |
Unfired high alumina brick | ||||
| Phosphate brick |
Phosphate abrasion resistant brick |
Phosphate special brick |
High Refracroriness Under load Phosphate brick |
|||
| YRS- 70 |
YRS-75 | P-75 | PA-78 | TP-80 | GH-80 | |
| Al2O3, ≥ % | 70 | 75 | 75 | 78 | 80 | 80 |
| ZrO2, % | 6-7 | - | - | - | - | - |
| Fe2O3,< % | 2.0 | 2.3 | 3.5 | 3.5 | 3 | 2.5 |
| B. D, g/cm3 ≥ |
2.5 | 2.5 | 2.6 | 2.65 | 2.8 | 2.9 |
| CCS,> Mpa | 50 | 65 | 70 | 75 | 80 | 80 |
| RUL,℃ > | 1450 | 1490 | 1300 | 1300 | 1350 | 1400 |
| Refractoriness℃,≥ | 1770 | 1790 | 1770 | 1790 | 1790 | 1790 |
Technical parameters of General purpose High Aluminium Brick for General Industrial Furnace:
| General purpose High Aluminium Brick for General Industrial Furnace | ||||
| Item | LZ-80 | LZ-75 | LZ-65 | LZ-55 |
| Al2O3, ≥ % | 80 | 75 | 65 | 55 |
| Fe2O3,< % | 2 | 2.5 | 2.5 | 2.6 |
| B.D,g/cm3 ≥ | 2.6 | 2.5 | 2.4 | 2.3 |
| CCS,> Mpa | 80 | 70 | 60 | 50 |
| RUL,℃ > | 1550 | 1510 | 1460 | 1420 |
| Refractoriness℃,≥ | 1790 | 1790 | 1770 | 1770 |
| A.P,≤ % | 21 | 22 | 23 | 24 |
| P. L.C (1500℃×2h), % |
-0.2 | -0.3 | -0.4 | -0.4 |
In addition to the above types of high aluminum brick, we can also according to your technical parameters to produce high aluminum products to meet your requirements.
